Microsoft Azure Administrator Associate AZ 104 Practice test 4

© examsnet.com

Question : 45 of 49

Marks: +1, -0

HOTSPOTYou have an Azure subscription that contains the Azure virtual machines shown in the following table.

Name	Connected to subnet
VM1	172.16. 1.0/24
VM2	172.16.2 .0/24

You add inbound security rules to a network security group (NSG) named NSG1 as shown in the following table.

Priority	Source	Destination	Protocol	Port	Action
100	172.16.1.0/24	172.16.2.0/24	TCP	Any	Allow
101	Any	172.16.2.0/24	TCP	Any	Deny

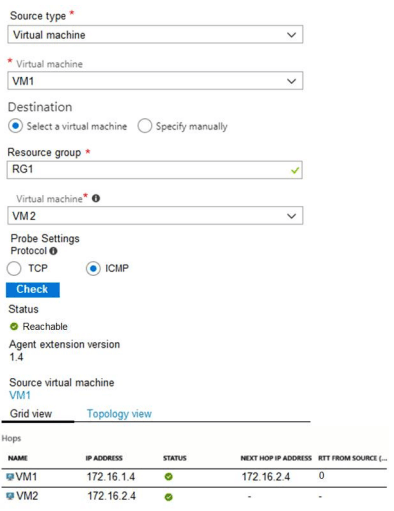

You run Azure Network Watcher as shown in the following exhibit.

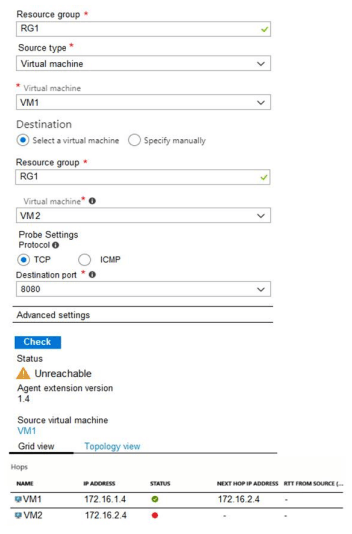

You run Network Watcher again as shown in the following exhibit.

For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.
Hot Area

NSG1 limits VM1 traffic ______
Yes
No
NSG1 applies to VM2 ______
Yes
No
VM1 and VM2 connect to the same virtual network ______
Yes
No
