Which of the two forces acting on the rigid ...

ICSE Class 10 Physics 2018 Paper

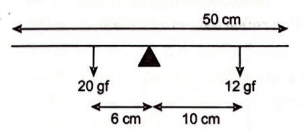

A half metre rod is pivoted at the centre with two weights of $20\,\mathrm{gf}$ and $12\,\mathrm{gf}$ suspended at a perpendicular distance of $6\,\mathrm{cm}$ and $10\,\mathrm{cm}$ from the pivot respectively as shown below.

Question : 40 of 78

Marks: +1, -0

Which of the two forces acting on the rigid rod causes clockwise moment?

Solution:

The force provided by 12 gf weight causes clockwise moment.
