ICSE Class 10 Physics 2018 Paper

© examsnet.com
Question : 49 of 78
Marks: +1, -0

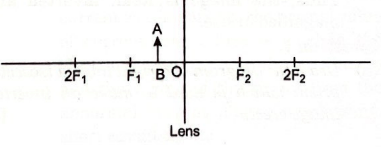

An object ABA B is placed between OO and F1F_1 on the principal axis of a converging lens as shown in the diagram.
Copy the diagram and by using the standard rays starting from point AA, obtain an image of the object ABA B.
Solution:

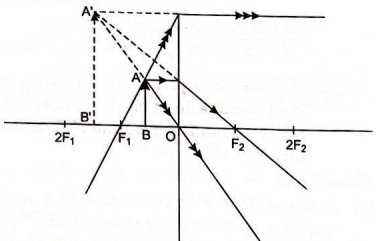

ABA' B' is the image.
