ICSE Class 10 Physics 2017 Paper

© examsnet.com
Question : 12 of 65
Marks: +1, -0
Draw a ray diagram to show the refraction of a monochromatic ray through a prism when it suffers minimum deviation.
Solution:

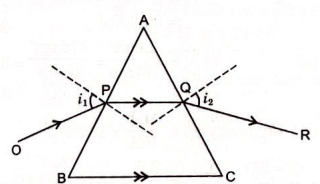

In the above figure, when the prism is in its position of minimum deviation :
(i) The angle of incidence, (i1)(i_1) is equal to the angle of emergence (i2)(i_2),
(ii) The refracted may PQ\text{PQ} is parallel to the base BC\text{BC} of the prism.
